2014 XCMG 25T Used Truck Crane Refurbished QY25K-I ISO9001 RoHS

Brand Name : XCMG

Model Number : QY25K-1

Certification : GS, RoHS, CE, ISO9001

Place of Origin : China

MOQ : 1 unit

Price : USD 30000~50000 per unit (FOB price)

Payment Terms : L/C, T/T, D/P, D/A, Western Union

Supply Ability : 20 units per month

Delivery Time : 15 work days

Packaging Details : Export standard

Year of Manufacture : 2014

Condition : Used, and can be refurbished

Aftersales service : available with technical and parts support

Maximum lifting height : >40m

Maximum lifting weight : 25T

Advantage : Second hand price, brand new experience

Contact Now

2014 XCMG 25T Used Truck Crane/Refurbished Truck Crane QY25K-I

QY25K-I truck crane is a crane product that XCMG have been committed to using the latest technology to continuously develop and update, with stronger functions and better adaptability to users. QY25K truck crane is a truck crane developed by XCMG in 2000. After continuous upgrading and transformation, the driving and operational performance of this product has been greatly improved. The chassis of this product is a three axle, with strong power and strong off-road capability; The boom is an optimized octagon section with excellent lifting capacity; The control system adopts hydraulic proportional (mechanical) control technology.

XCMG QY25K-I truck crane fully integrates advanced design and manufacturing technologies both domestically and internationally, and multiple proprietary core technologies have obtained national patents. Large equipment such as blast furnaces and coke ovens are increasingly becoming larger, and similar large lifting machinery is needed to complete the installation and maintenance of these large equipment.

Basic Info.

Model NO.

QY25K-I

Shaft Number

3

Boom length

33m

Jib length

8.15m

Engine Rated Power

213/2200kw/(R/Min)

Operating Weight

29400kg

Transport Package

Export Standard Package

Specification

12550*2500*3380mm

Origin

China

HS Code

87051091

Product Parameters:

Parameters Unit Value
Overall length mm 12550
Overall width mm 2500
Overall height mm 3380
Weight in traveling state kg 29400
Front axle load kg 6200
Rear axle load kg 23200
Engine model SC8DK28Q3/WD615.329 (Euro III)
Rated engine power kW/(r/min) 206/2200, 213/2200
Rated engine torque N.m(r/min) 1112/1400, 1160/1400
Maximum traveling speed Km/h 75
Minimum turning diameter m 22
Minimum ground clearance mm 260
Approach angle ° 16
Departure angle ° 13
Maximum gradeability % 30
Fuel consumption/100km L ≈37
Maximum rated lifting weight t 25
Maximum lifting torque kN.m 1000
Basic boom m 10.3
Maximum boom length m 33
Maximum boom length + jib m 41.15
Longitudinal distance of leg m 5.14
Horizontal distance of leg m 6
Luffting time of boom s 75
Full extension time of boom s 100
Maximum swing speed r/min ≥2.5

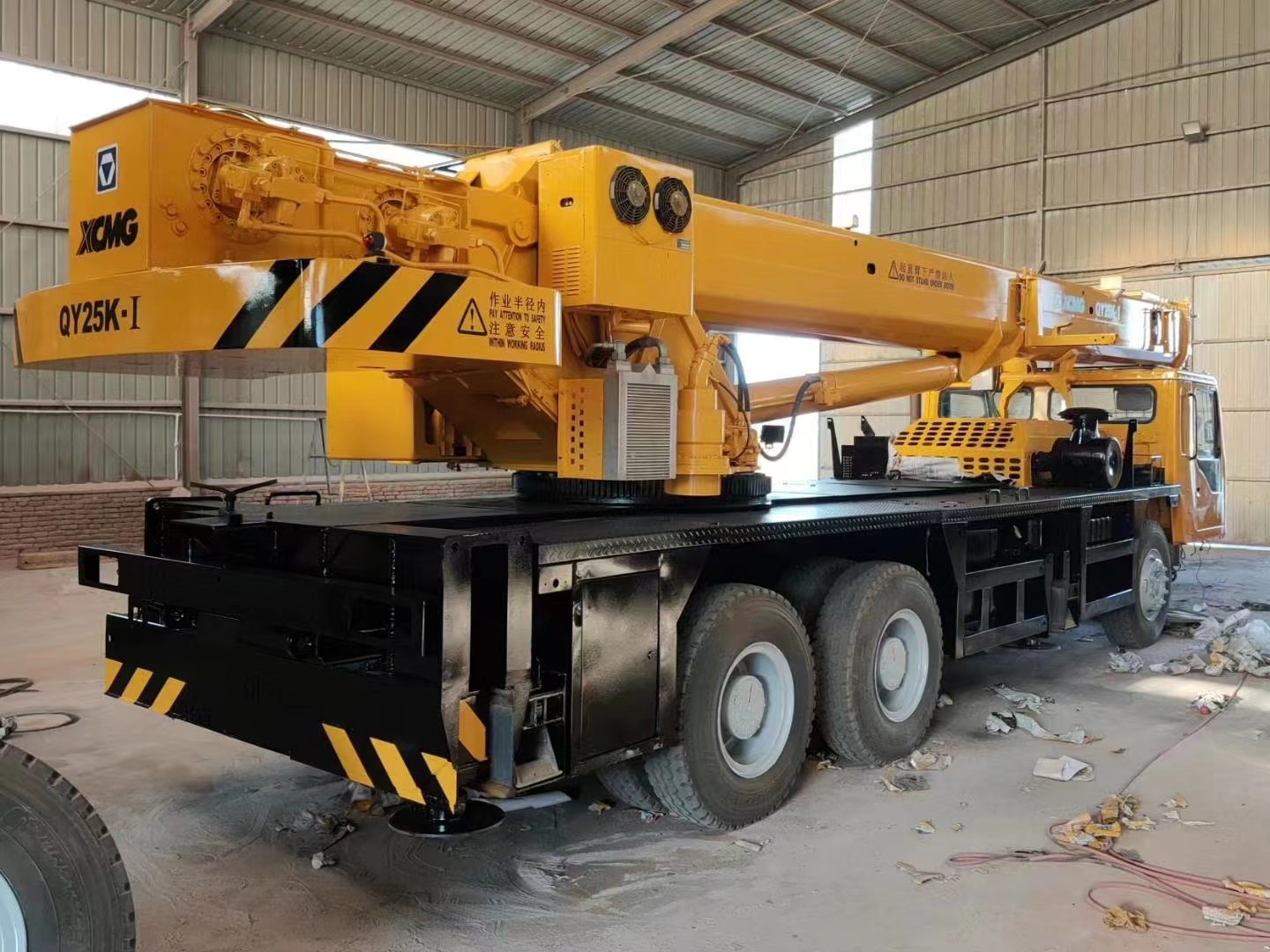

Product Show

2014 XCMG 25T Used Truck Crane Refurbished QY25K-I ISO9001 RoHS2014 XCMG 25T Used Truck Crane Refurbished QY25K-I ISO9001 RoHS
